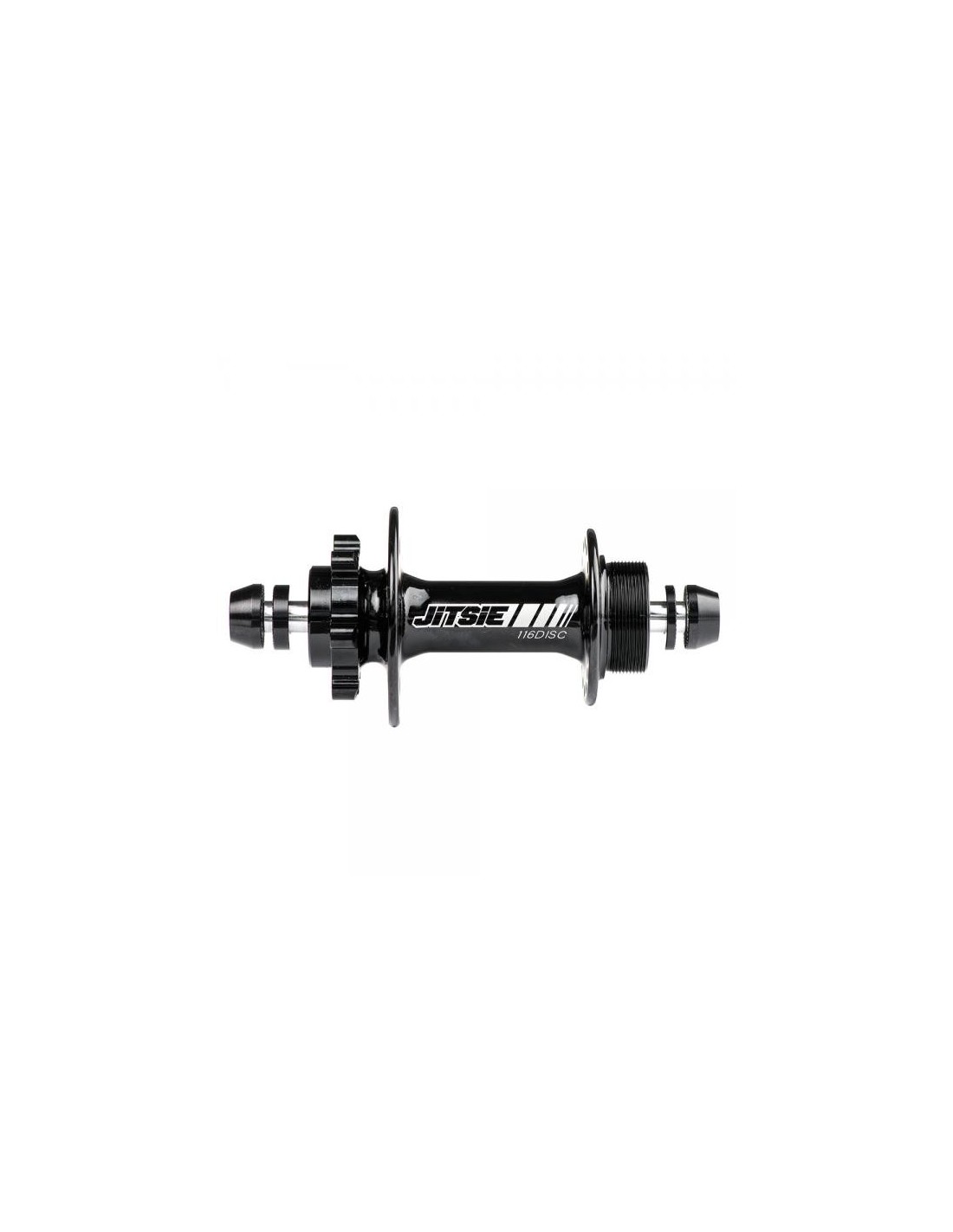

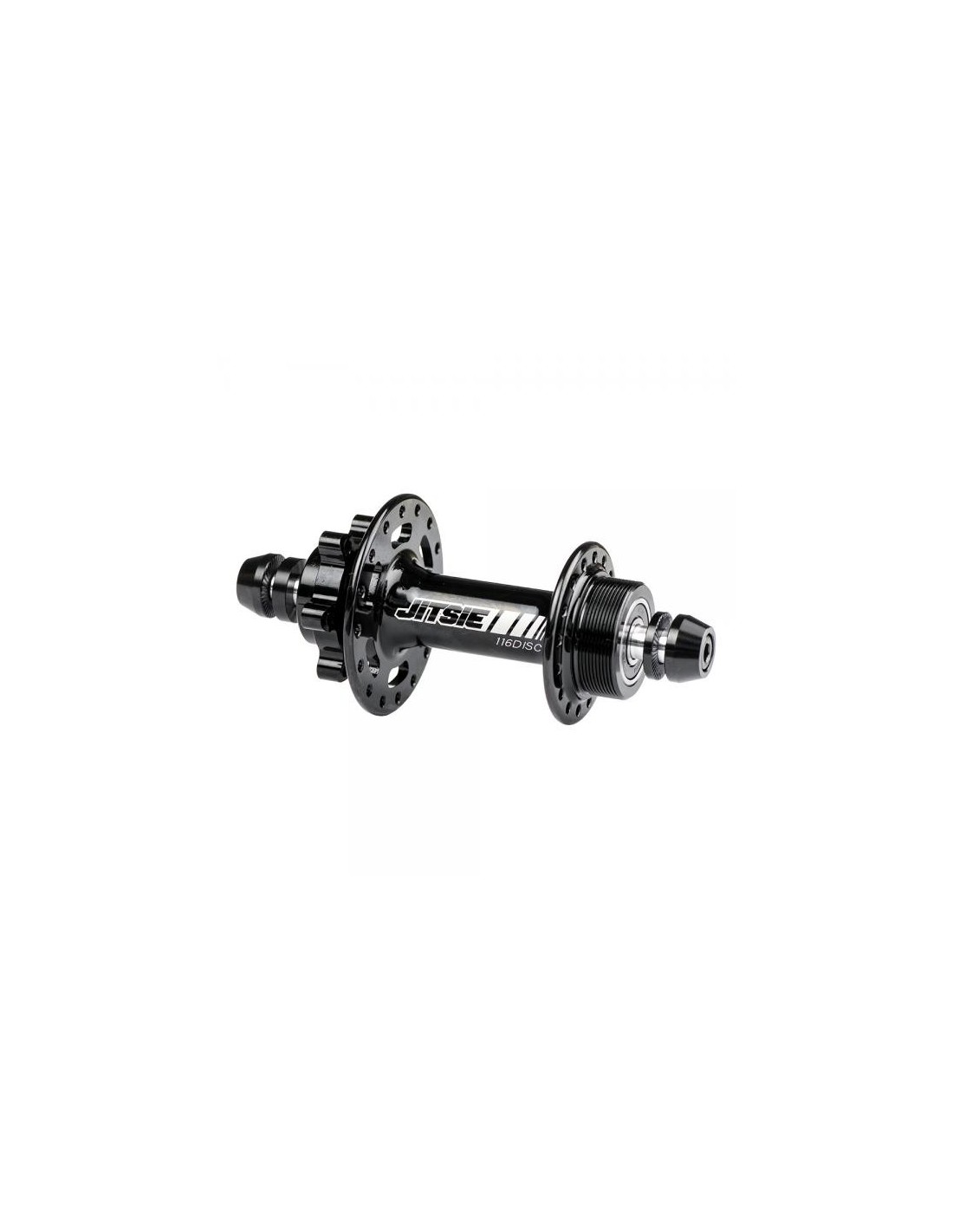

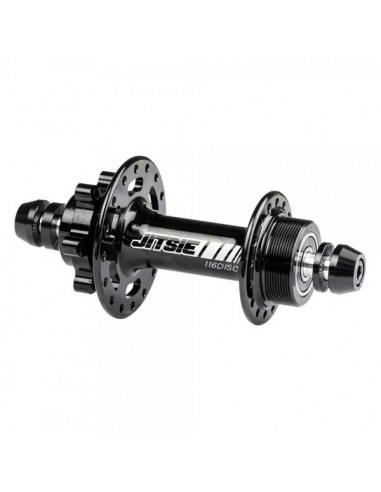

Rear disc hub from top Belgian brand Jitsie!
Solid and reliable design means this hub should last very well and be strong enough for all types of Trials.
110mm spacing fits most modern 20" trials frames when used with snail cams, as well as many 24" and some 26" frames.
Standard 1.37" x 24tpi thread is compatible with almost all sprockets we stock.
32 spoke hole drilling only.
CNC machined, high-grade aluminium hubshell.
Serrated axle bolt washers either side of the dropout, ensure a secure fit in your frame.
Sealed cartridge bearings for a smooth, long life.
Available in black with laser etched Jitsie logos to finish it off nicely.
Weight: 160g (plus bolts and washers at 25g)
Hub Dimensions
Disc Side:
- Flange Diameter: 58mm
- Centre to Flange: 25mm
Drive Side:
- Flange Diameter: 45mm
- Centre to Flange: 35mm
