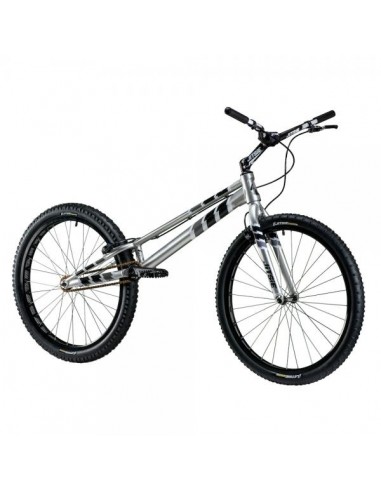

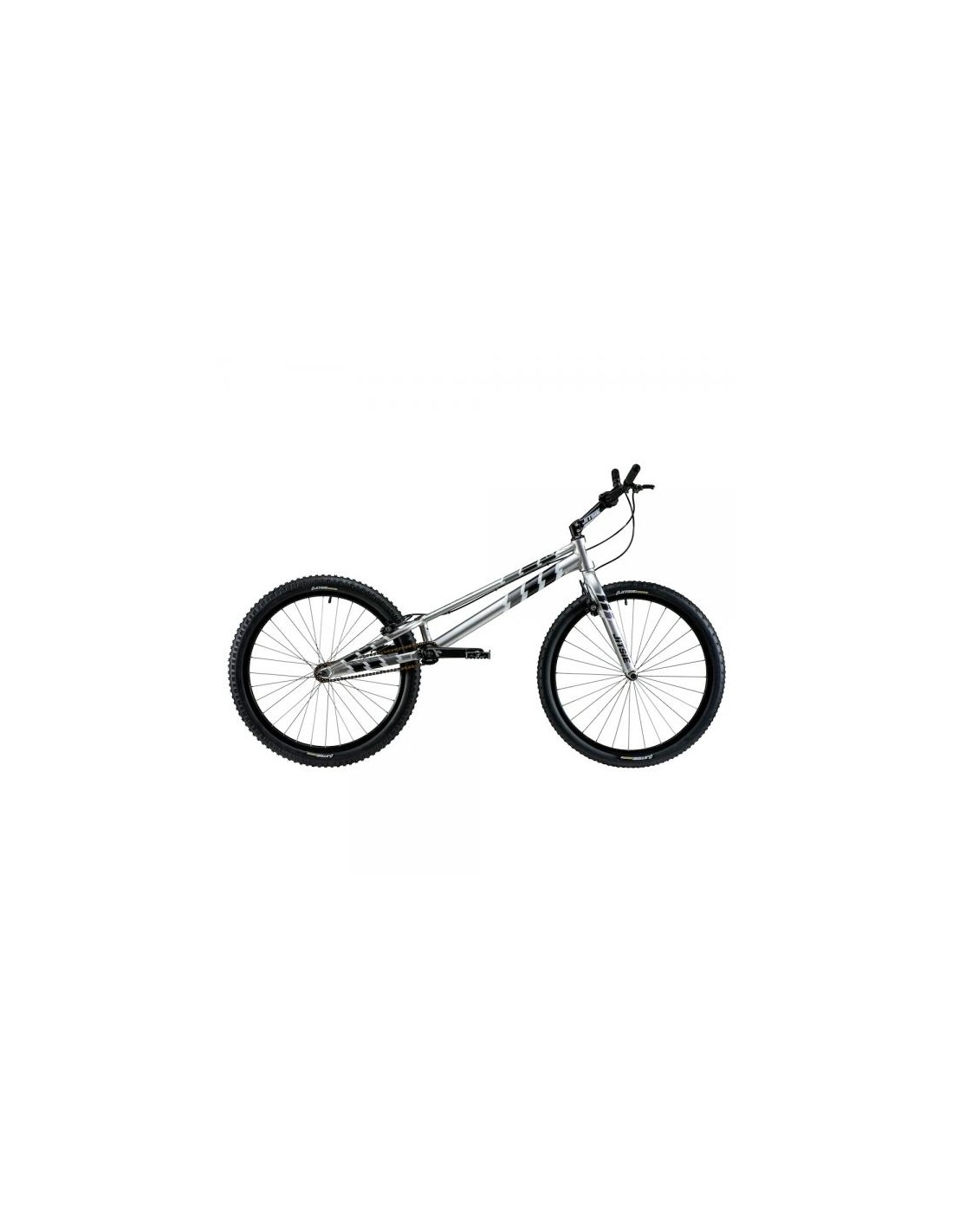

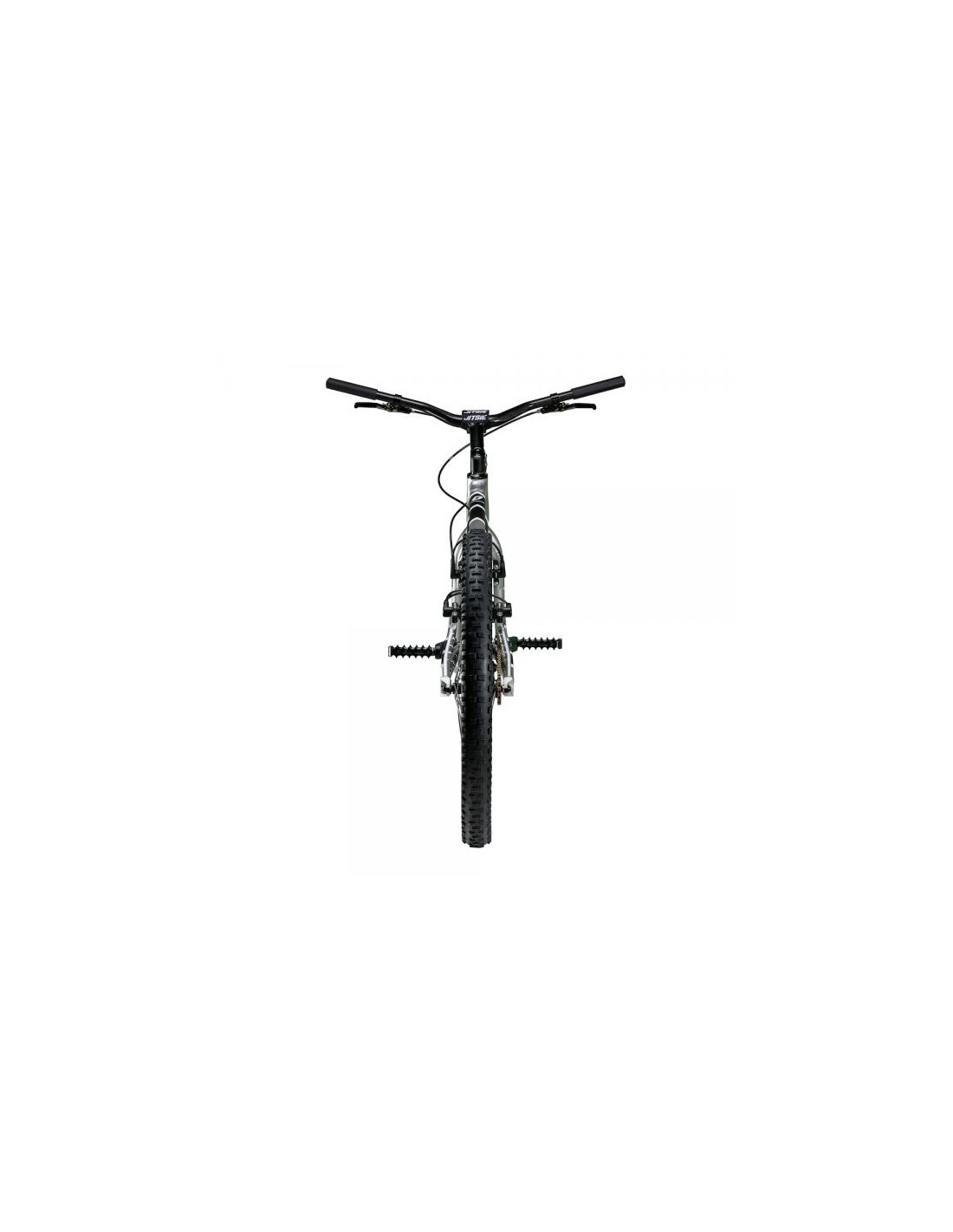

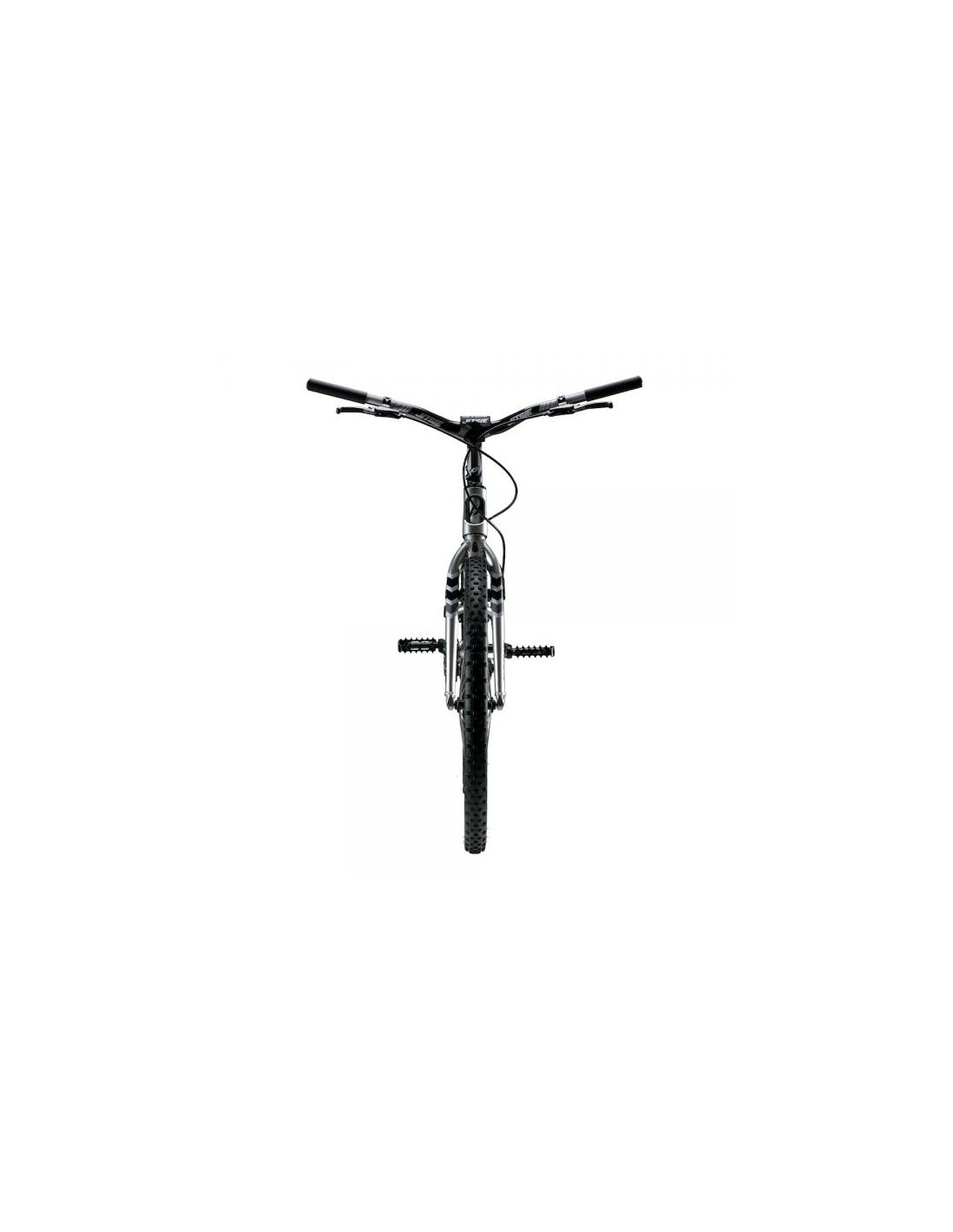

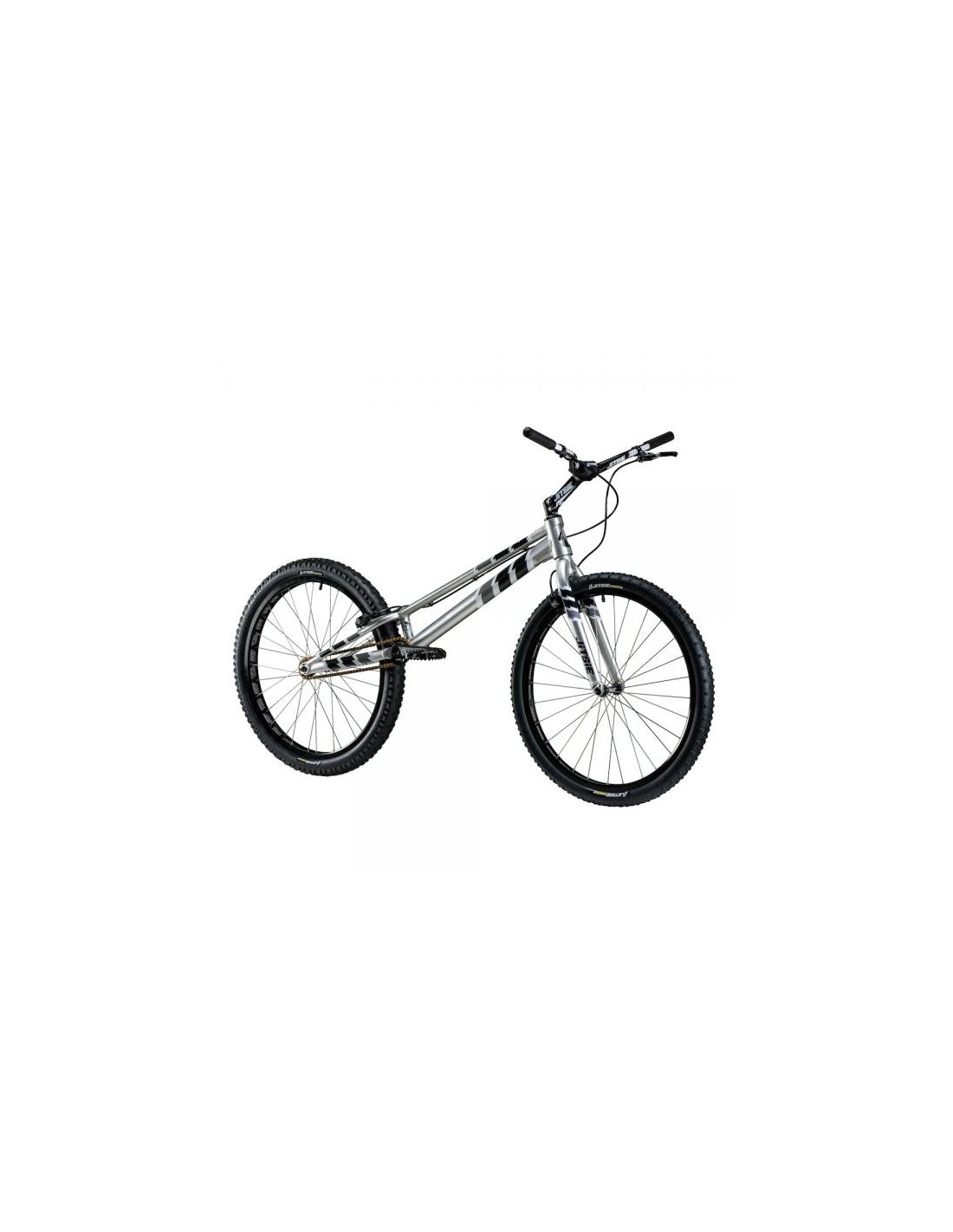

Jitsie VARIAL 26" RACE BI20

Jitsie VARIAL full bike 26" RACE.

Taking innovation to the next level in trials, the Varial bike reflects Jitsie's 100% focus on trials. The unity of quality manufacturing and functional minimalistic design result in a performant and durable bicycle that makes it the choice for any trials rider.

Frameset:
* frame: Jitsie Varial 1085mm HS tapered
* fork: Jitsie Varial 400mm HS tapered

Features frame:
* manufactured from aerospace 6061-T6 aluminium
* minimalistic design with focus on performance and durability
* 120mm high CNC machined headtube designed for semi-integrated headset
* CNC machined 68mm wide bottom bracket yoke for ISIS bottom bracket
* CNC machined integrated rear brake boaster for HS rim brakes distanced 100mm apart
* CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
* sandblasted and black anodized finish with Jitsie graphics
* frame comes supplied with lightweight silicon seat plug
* frame allows for the Jitsie aftermarket seat to be installed

Geometry:
* wheelbase: 1085mm
* chainstay length: 380mm
* bottom bracket height: 70mm
* headtube: 120mm
* headtube angle: 71.5°
(geometry based on Jitsie Varial fork 400mm and +35mm offset)

Wheels:
* hub front / rear: HS100 28h / HS116 32h
* rim front / rear: 26" 32mm 28h / 26" 48mm 32h
* spokes / nipples: inox 1.8mm / aluminium
* tyre front / rear: Reverz 26"x2.0 / Reverz 26"x2.5
* tubes: 26" light 0.9mm

Components:
* headset: semi-integrated 1 1/8"-1.4" (tapered)
* headset spacer: 5mm aluminium
* stem: 150mm 35°
* handlebar: carbon 31.8mm 730x110mm
* grips: foam
* front brake: Jitsie race
* rear brake: Jitsie race

Drivetrain:
* bottom bracket: Isis 123mm
* cranks: 175mm
* freewheel: 135.9 18t
* protector: bash ring
* sprocket: race 15t
* chain: KMC Z610HX
* chain tensioner: snail cams

The bike is normally sold without pedals but trialprod will offer you 1 pair of Jitsie simple cage pedals with the purchase of this bike.

Weight: 8.6kg avec pédales.
