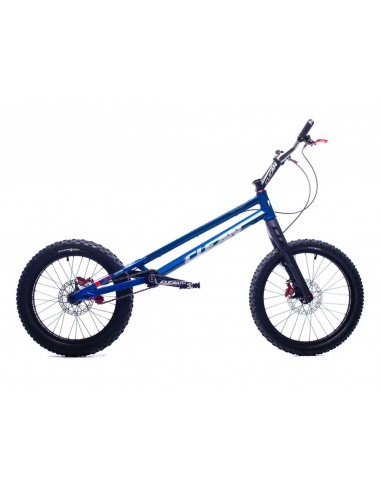

Clean X1 20" 2.0 Hope Tech3

Frame constructed in high quality 6061 T6 + 7075 T6 aluminium alloy

WORLD CUP edition => carbon fork and carbon handle bar.

Tapered headset, being compatible with our carbon fork if you want to update your bike!

Frame and artwork 100% redesigned

CNC machined vertical dropouts

Integrated chain tensioner

CNC machined brake booster, perfectly integrated on the seatstays

WARNING: brakes and crankset shown on the pictures are NOT the ones actually mounted on the bike. See here below for the actual list of components.

Frame: Clean X2. Aluminium 6061 T6 + 7075 T6 in beautiful blue.

Fork: Clean Modulus carbon - 4 bolts + PM (disk brake)

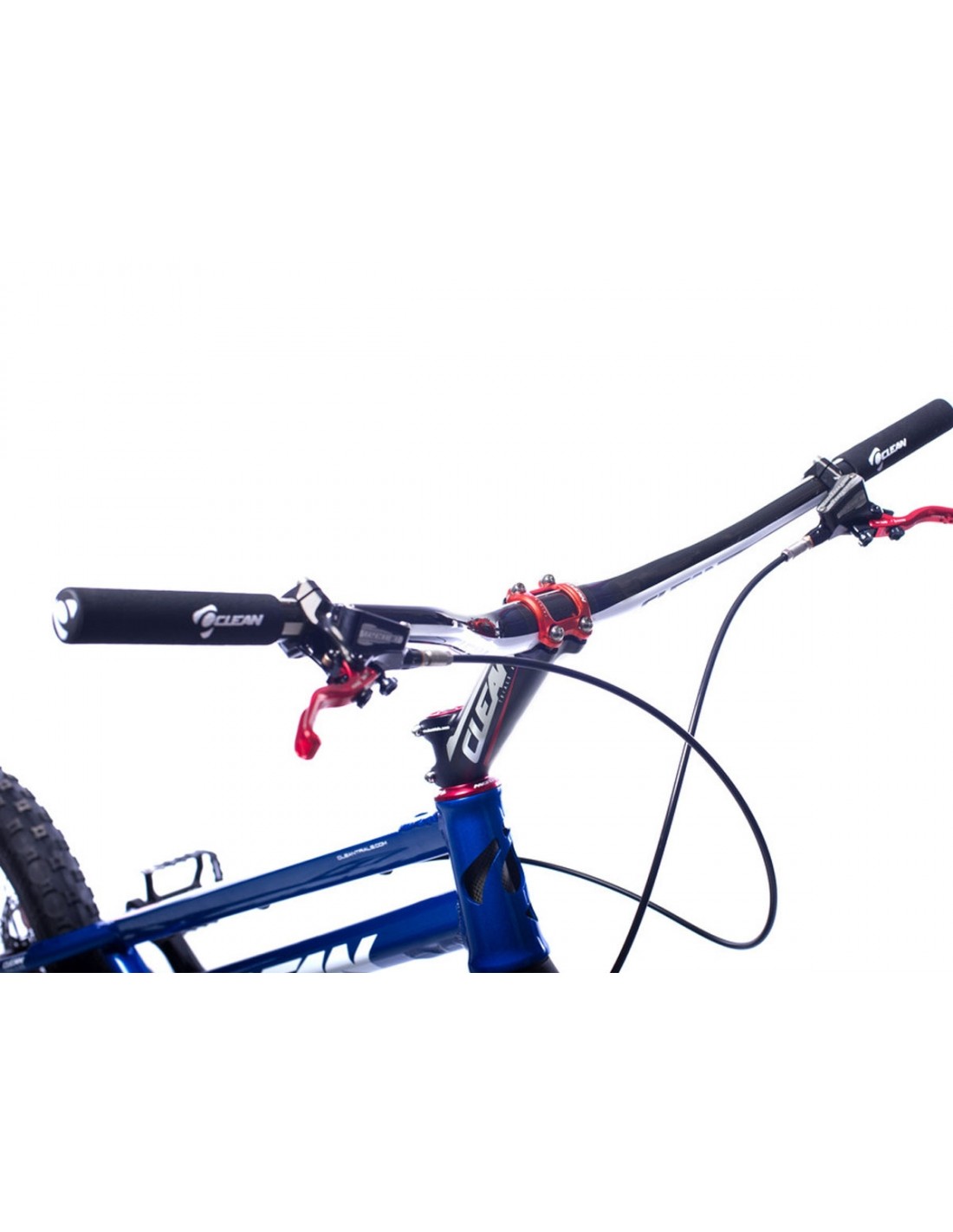

Handlebar: Clean Carbon.

Grips: Clean Foam. Extrathin.

Stem: Clean 150x35

Headset: Clean Tapered. Superlight. Semi integrated

Hubs: Clean Expert Hubs. 100mm / 116mm

Brakes: Hope / Tech3 with clean rotors (160mm front and 162.35mm rear)

Bottom Bracket: Clean ISIS BB 123mm

Pedals: Clean Single Cage.

Chain: KMC 610HX

Chain tensioner: Integrated

Rims: Clean High Profile.

Spokes: 1.8mm Black

Nipples: 16g aluminium. Red

Freewheel: 108.9. 18T.

Sprocket: Clean 12T.

Front tyre: Clean Koala 20x2.0

Rear tyre: Clean Koala 19x2.60

Front tube: Clean light

Rear tube: Clean light.

GEOMETRY

Wheelbase: 1005mm

BB high: +87mm

Chainstay: 350mm

Head angle: 72º

Reach: 605mm

Weight: 8.6kg
