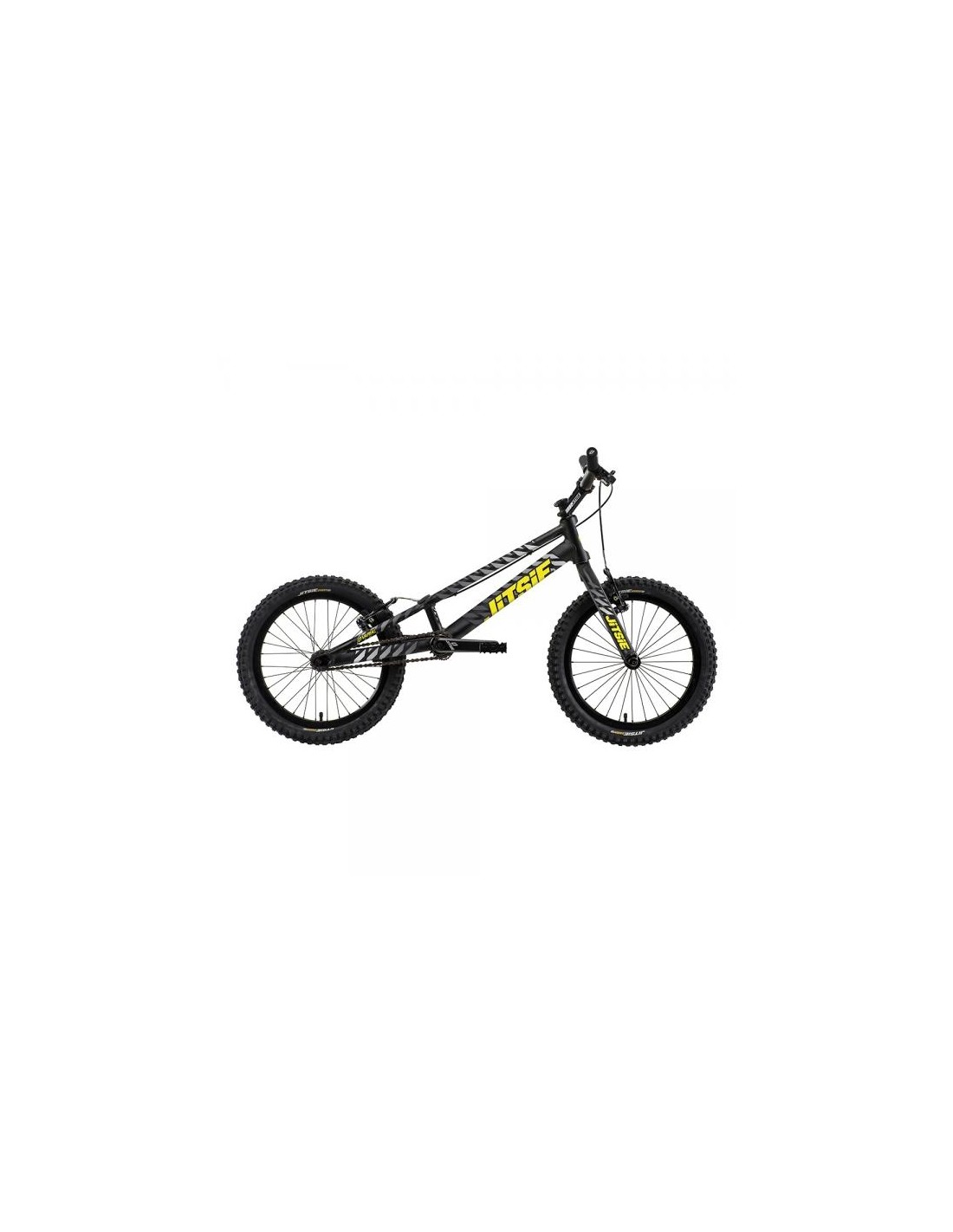

Jitsie VARIAL 18" 840 v-brake

This trials bike is designed for kid. It is a great tool to start riding trials.

For kids from 6 to 8 years old.

Taking innovation to the next level in trials, the Varial bike reflects Jitsie's 100% focus on trials. The unity of quality manufacturing and functional minimalistic design result in a performant and durable bicycle that makes it the choice for any trials rider.

Frameset:
* frame: Jitsie Varial 740mm V-brake
* fork: Jitsie Varial 300mm with V-brake mounts

Features frame:
* manufactured from aerospace 6061-T6 aluminium
* minimalistic design with focus on performance and durability
* 110mm high CNC machined head tube designed for semi-integrated headset
* 68mm wide bottom bracket shell for ISIS bottom bracket
* V-brake mounts which also accept aftermarket Magura Evo2 rim brake clamps
* CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
* sandblasted and black anodized finish with Jitsie graphics
* frame comes supplied with lightweight silicon seat plug
* frame allows for the Jitsie aftermarket seat to be installed

Geometry:
* wheelbase: 740mm
* chainstay length: 280mm
* bottom bracket height: 25mm
* headtube: 110mm
* headtube angle: 71.5°
(geometry based on Jitsie Varial fork 300mm and +45mm offset)

Wheels:
* hub front / rear: HS100 28h / HS116 32h
* rim front / rear: 18" 32mm 28h / 18" 32mm 32h
* spokes / nipples: inox 1.8mm / aluminium
* tyre front / rear: Ziggy 18"x2.25 / Ziggy 18"x2.25
* tubes: 18" light 0.9mm

Components:
* headset: semi-integrated 1 1/8"
* headset spacer: 5mm aluminium
* stem: 90mm 35°
* handlebar: 31.8mm 580x75mm
* grips: foam
* front brake: V-brake
* rear brake: V-brake

Drivetrain:
* bottom bracket: square taper 124.5mm
* cranks: 140mm
* freewheel: 108.9 17t
* protector: bash ring
* sprocket: steel 12t
* chain: KMC Z610HX
* chain tensioner: snail cams

The bike is normally sold without pedals but trialprod will offer you 1 pair of Jitsie kids simple cage pedals with the purchase of this bike.

Weight: 6.80kg
